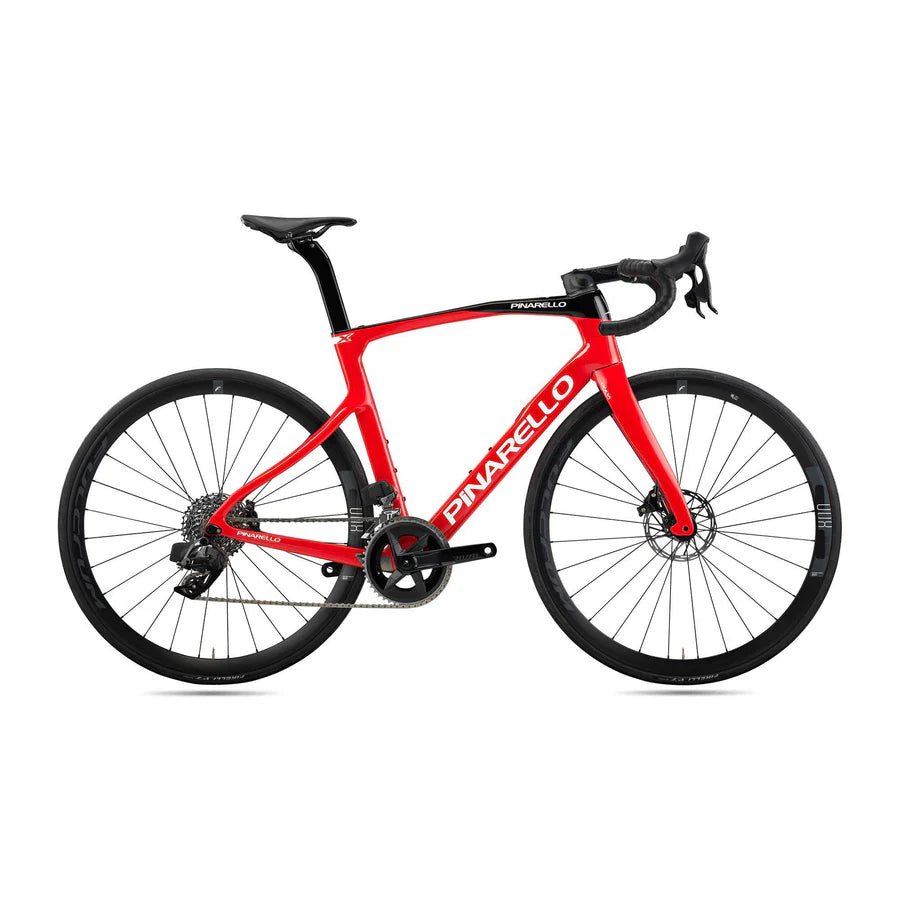

Pinarello X3 Disc 105 Di2

Pinarello is known for its racing bikes, but the vast majority of cyclists are simply looking for a bike that is a joy to ride day in and day out. The X3 strikes the perfect balance of comfort and performance so you can feel that Pinarello speed while still having a blast riding. It takes the pillars of Pinarello performance frames and adjusts them for more comfort over long distances. Still, they use a carbon frame and general Pinarello tactics to make sure you have a fast bike. All of this comes in at a great price. The Pinarello X3 Disc is an endurance road bike that you will never want to stop riding.

The frame of the Pinarello X3 is made with Toray’s T600 carbon fiber. This keeps the bike very affordable while assuring low weight and high stiffness. It is also the perfect carbon choice for an endurance frame due to its vibration dampening capability along with low weight and high responsiveness. With Pinarello, you can always count on aerodynamic touches to make the bike faster than most. An asymmetric frame accounts for the unbalanced torsion due to the chain only being on one side. This gives you a more stable and powerful ride. The X3 also features the classic Onda fork which is known for its aero qualities as well as its flawless control and shock dissipation.

• Frame Material: Torayca T600 UD
• Fork: Pinarello Onda Carbon
• Headset: Integrated
• Seatpost: Pinarello Aero Seatpost
• Front Derailleur: Shimano 105 Di2 12S
• Rear Derailleur: Shimano 105 Di2 12S
• Crankset: Shimano 105 Di2 12S
• Shifters / Levers: Shimano 105 Di2 12S
• Cassette: Shimano 105 Di2 12S
• Chain: Shimano 105 Di2 12S
• Bottom Bracket: Shimano 105 Di2 12S
• Brake Calipers: Shimano 105 2-piston caliper
• Rotors: Shimano 105 160mm
• Wheelset: Fulcrum Racing 800DB
• Axles: MOST Ultralight Custom Axle 12x100 & 12x142
• Handlebar: Jaguar XA Aero TiCR
• Stem: Tiger Aero Alu TiCR
• Bar Tape: MOST Bar Tape
• Seatpost: Pinarello Aero Seatpost
• Seat Clamp: FSC Frontal Seat Clamp

• Geometry

• Frame Size CC	43cm	46cm	49cm	51.5cm	53cm	54.5cm	56cm	58cm	60cm
  SEAT TUBE CE	425	450	470	495	510	525	540	560	590
  TOP TUBE L	492	509	525	536	545	555	565	577	590
  SEAT TUBE ANGLE A[°]	75.25°	74.50°	74.00°	73.75°	73.50°	73.25°	73.00°	72.75°	72.50°
  HEAD TUBE ANGLE B[°]	70.00°	70.50°	71.00°	71.50°	72.00°	72.25°	72.50°	72.50°	72.50°
  CHAINSTAY P	415	415	415	415	415	415	415	415	415
  HEAD TUBE T	125	130	142	151	161	173	187	211	232
  BB DROP D	67	72	72	72	72	72	72	67	67
  FORK RAKE R	52	52	52	47	47	47	47	47	47
  FORK HEIGHT G	373	373	373	373	373	373	373	373	373
  REACH	341.9	352.1	361.9	368.5	372.5	376.7	380.2	384.1	388.1
  STACK	527.5	539.2	552.4	564.4	575.8	588.2	602.4	620.3	640.4
