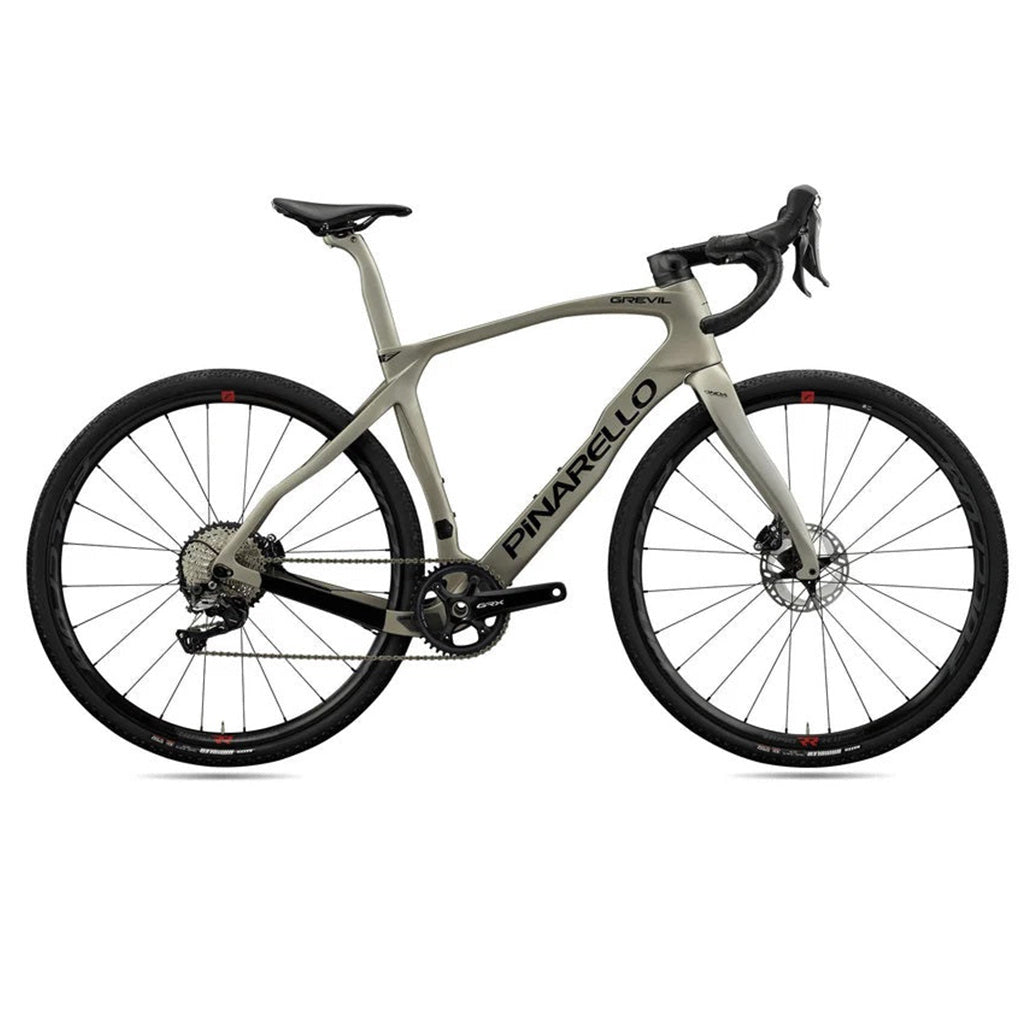

Pinarello Grevil F5 Disc GRX610 (1x)

The Pinarello Grevil F5 is a versatile bike that helps you go full gas anywhere. Classified as a gravel bike, it has no problem adventuring into the unknown but is also very fast on the road. Pinarello refers to it as the off-road Dogma. With an aerodynamic frame that is lighter and stiffer than ever, you can count on pure speed regardless of where you take the Grevil F5. It is also ready to accommodate virtually any combination of wheels and tires so you can set your bike up based on the type of terrain you plan to ride. The Pinarello Grevil F5 gives you complete freedom to push the limits of any terrain while providing that famous Pinarello speed.

When it comes to gravel riding, aerodynamics are often ignored. The reality is that many gravel races are around 200km long. An aerodynamically efficient setup can save you tons of time over that distance. At high speeds, every watt saved can be the difference between a best time and an average day. The Grevil F5 brings back the famed Fork Flap, contributing to its aero efficiency. The Fork Flap stabilizes chaotic airflow brought on by gravel riding at the front end and evenly disperses it for lower resistance. A Flat Back Profile was borrowed from the Dogma, reducing drag on the tube, especially with water bottles equipped.

• Frame Material: Torayca T700 UD
• Fork: Grevil Onda w/Forkflap / Tapered Head Tube
• Headset: MOST 1.5" Integrated for TiCR
• Seatpost: Pinarello Carbon Aero
• Front Derailleur: None
• Rear Derailleur: Shimano GRX820
• Crankset: Shimano GRX610
• Shifters / Levers: Shimano GRX610
• Cassette: Shimano 105 7101 12-speed 11-34
• Chain: Shimano M6100 12-speed
• Wheel - Front: Fulcrum Rapid Red 500 Disc 12x100mm
• Wheel - Rear: Fulcrum Rapid Red 500 Disc 12x142mm
• Stem: MOST Tiger TiCR Aluminum
• Handlebar: MOST Jaguar GR TiCR
• Saddle: MOST Lynx Aircross
• Tires: Maxxis Rambler 700x40
• Bar Tape: MOST Ultragrip EVO 3mm
• Pedals: Not Included

• Geometry

• Frame Size CC	47cm	50cm	53cm	55cm	57.5cm	60cm
  SEAT TUBE CE	410	445	475	500	520	550
  TOP TUBE L	520	535	547	560	577	597
  SEAT TUBE ANGLE A[°]	74.50°	74.00°	73.75°	73.50°	73.00°	72.50°
  HEAD TUBE ANGLE B[°]	70.25°	70.50°	70.75°	71.75°	72.00°	72.25°
  CHAINSTAY P	422	422	422	425	425	425
  HEAD TUBE T	120	135	155	165	180	200
  BB DROP D	72	72	67	67	67	67
  FORK RAKE R	55	55	55	50	50	50
  FORK HEIGHT G	395	395	395	395	395	395
  REACH	360.1	367.8	374.4	382.0	389.7	398.5
  STACK	548.4	563.5	578.4	593.5	608.8	628.8
