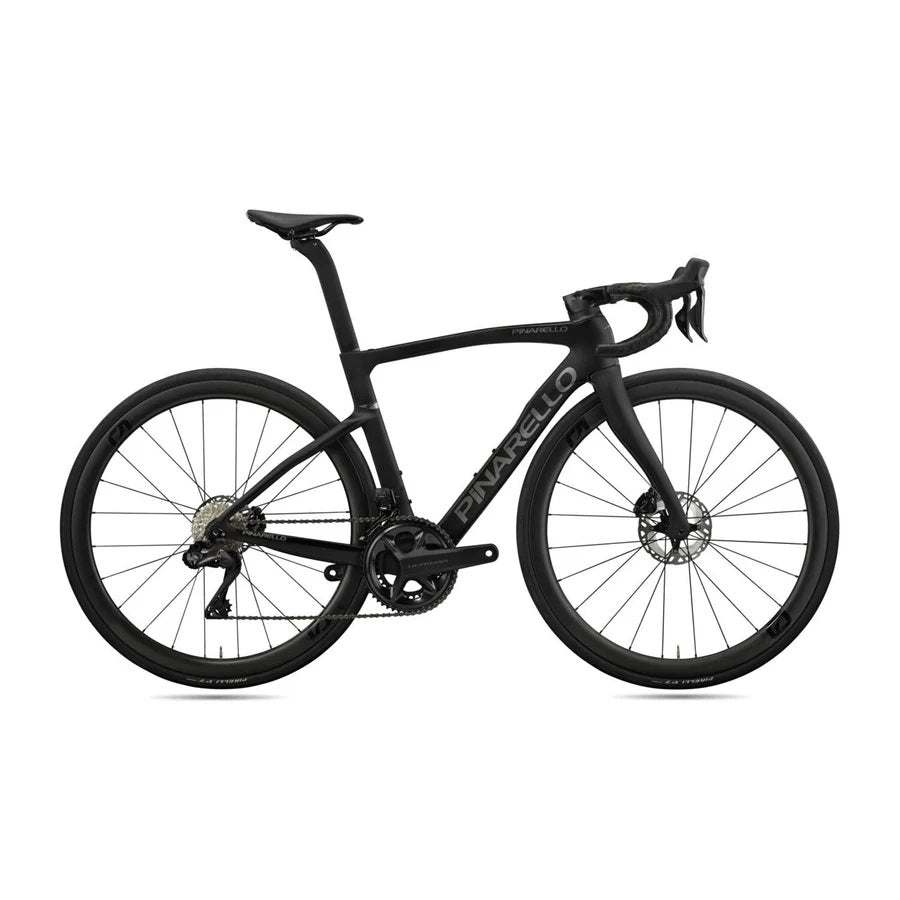

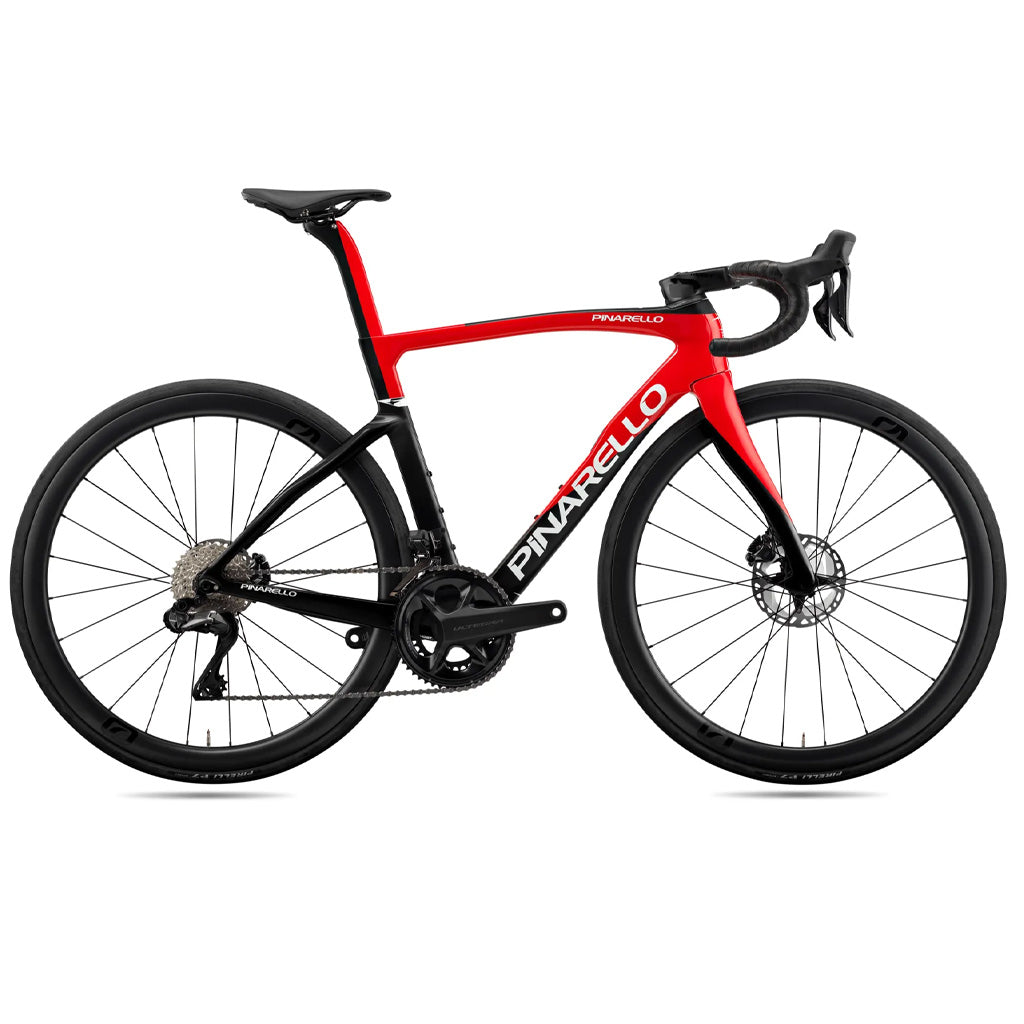

The Pinarello F7 is built purely for racing performance on the road; simple as that. It comes in at a much lower price than the Tour-winning Dogma but still packs plenty of speed to compete at a high level. The F7 is not a climbing bike, an aero bike, or an endurance bike; it is an all-around performance bike with no compromise. This bike is for the rider who wants to climb with ease, sprint ahead of the pack, and descend with confidence. Compared to the X, the F is more speed focused and less of an endurance bike but can still be ridden for miles on end. Pinarello knows that most F-Series models will never be raced, but they made sure that your daily ride will be had with race-level speed.

The frame of the F7 is made with T900 carbon fiber with a 3K finished. Pinarello teamed up with world class carbon manufacturer Toray to create a carbon layup that is light, strong, and stiff, with targeted areas for each. This allowed them to create a frame that is as lightweight as possible without sacrificing the strength and stiffness you need. T900 is a step below their T1100 carbon, giving you a much lower price on a material that still boasts high-level performance. With T900 3K carbon, you can count on a balance of reactivity, vibration dampening, and low weight.

• Specifications
• Geometry

• Frame Specifications

  • Frame Material: Torayca T900 UD Carbon
  • Fork: F-Series Onda Carbon
  • Headset: Integrated
  • Seatpost: F-Series Carbon
  • Front Derailleur: Shimano Ultegra Di2 8150
  • Rear Derailleur: Shimano Ultegra Di2 8150
  • Crankset: Shimano Ultegra 8100
  • Brake Calipers: Shimano Ultegra 8170 Hydraulic Disc
  • Rotors: Shimano
  • Shifters / Levers: Shimano Ultegra Di2 8170
  • Cassette: Shimano Ultegra 8100
  • Chain: Shimano M8100 12-speed
  • Wheel - Front: Most Ultrafast 40 / 2023 Fulcrum Racing 500
  • Wheel - Rear: Most Ultrafast 40 / 2023 Fulcrum Racing 500
  • Stem: Talon Ultra Light 2025 / MOST Alloy 2023
  • Handlebar: Talon Ultra Light 2025 / MOST Alloy 2023
  • Saddle: Most Aircross
  • Pedals: Not Included
•

  Frame Size CC	43cm	46.5cm	50cm	51.5cm	53cm	54.5cm	56cm	57.5cm	59.5cm
  SEAT TUBE CE	425	450	465	485	500	515	525	560	580
  TOP TUBE L	500	515	525	535	545	555	565	578	600
  SEAT TUBE ANGLE A[°]	74.40°	74.40°	74.00°	73.70°	73.70°	73.40°	73.00°	73.00°	72.40°
  HEAD TUBE ANGLE B[°]	69.50°	70.50°	71.40°	72.00°	72.50°	72.80°	73.20°	73.70°	73.40°
  CHAINSTAY P	406	406	408	408	408	410	410	410	410
  HEAD TUBE T	97	104	109	114	123	138	149.5	178	220
  BB DROP D	67	72	72	72	72	72	72	72	67
  FORK RAKE R	43	43	43	43	43	43	43	43	43
  FORK HEIGHT G	373	373	373	373	373	373	373	373	373
  REACH	351.3	365.2	372.1	378.1	385.6	388.3	390.8	395.4	400.3
  STACK	502.5	517.7	525.5	532.3	542.6	557.9	570.3	599.3	633.5
