This dependable UST road wheel gives you the confidence you need to tackle rugged, adventurous roads with smooth control.
Purpose-built for riding rough roads, gravel or dirt.
22mm wide rim takes tire up to 62mm. UST Road Tubeless technology improves comfort and rolling resistance, and reduces the risk of punctures. Compatible with all standard retention systems.
Proven performance and reliability at an attainable cost.
High-quality QRM cartridge bearings. Disc-brake-specific, sleeved-style rim technology. Straight-pull round spokes, which are stronger than J-bend spokes.
Rolling efficiency and a nimble ride quality.
Sleeve joint rim minimizes weight. Consistent and stable spoke lacing. Low-friction hubs.
With a wide 22mm rim profile that's optimized for high-volume tires, this UST Road Tubeless wheel system is built for adventure.
Perfect for riding on rough roads, gravel or dirt, it gives you the smooth-riding performance of tubeless tires and makes it easy to set them up without any hassles. Low rolling resistance and a reduced risk of punctures add up to a better overall riding experience, especially on rugged terrain.
The wheels are engineered for the unique demands of disc brakes, built up with 24 straight-pull spokes, which are stronger than J-bend spokes. So wherever the road goes, and however rough it gets, you're ready to keep things rolling.
Weight : 1890 grams (Pair)
Weight : 870 grams (Front)
Weight : 1020 grams (Rear)
Material: S6000 Aluminum
Height: 22 mm
Disc brake specific profile
Valve hole diameter: 6.5 mm
Tire: UST Tubeless and tubetype
Internal width: 23 mm
ETRTO size: 622x23TC ROAD
Shape: straight pull, round
Nipples: steel, ABS
Count: 24 front and rear
Lacing: front and rear crossed 2
Front and rear bodies: aluminum
Axle material: aluminum
Front: Quick release, 12x100 and 15x100 through axle compatible
Rear: Quick Release, 12x142 and 12x135 compatible
Instant Drive 360
Color: Black only
Disc standard : 6 Bolts or Center Lock (R)
Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies
Front axle: 12mm thru axle, easily convertible to quick release with included adapters. Convertible to 15mm with complete axle replacement
Compatible Adapters and freewheel bodies
12 to 9mm front adapter for quick release (LV2680300)
15mm axle (LV2373500)
12x142 rear axle adapters ([LV2510700] - Delivered with the wheel)
12 to 9mm rear adapter for quick release ([LV2510800] - Delivered with the wheel)
12x135 rear axle adapters (LV2510900)
ID360 Shimano / Sram Light freewheel body (LV3850100)
ID360 Campagnolo freewheel body (LV3440100)

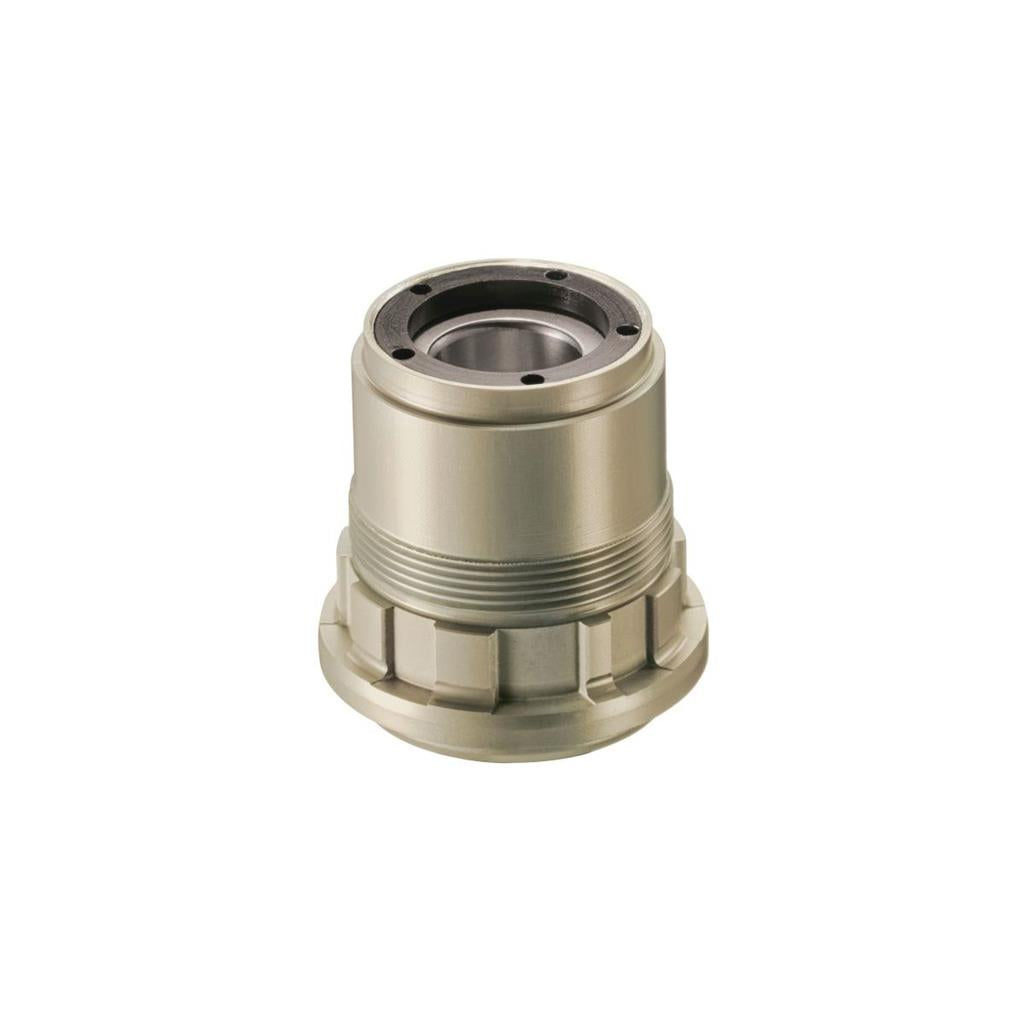

ID360 XD-R freewheel body (LV2580100)

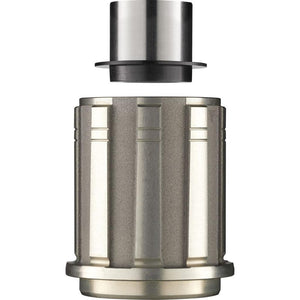

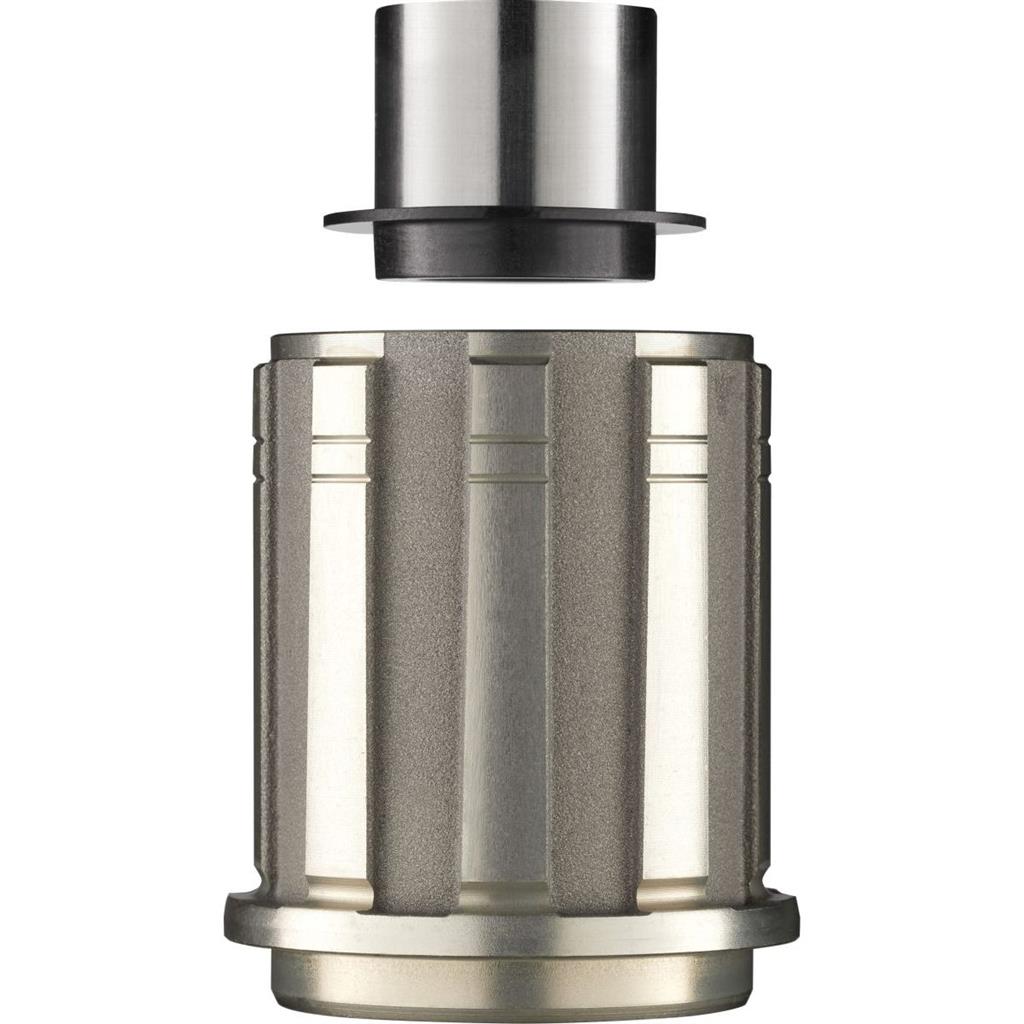

ID360 Shimano / Sram freewheel body ([LV3430100] - Delivered on the wheel)
ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn't exceed 120kg, bike included
Recommended tyre sizes: 28 to 64 mm (1.1" to 2.5")
Max. Pressure: see indication on wheel and tyre. If they differ, use the lowest of the 2

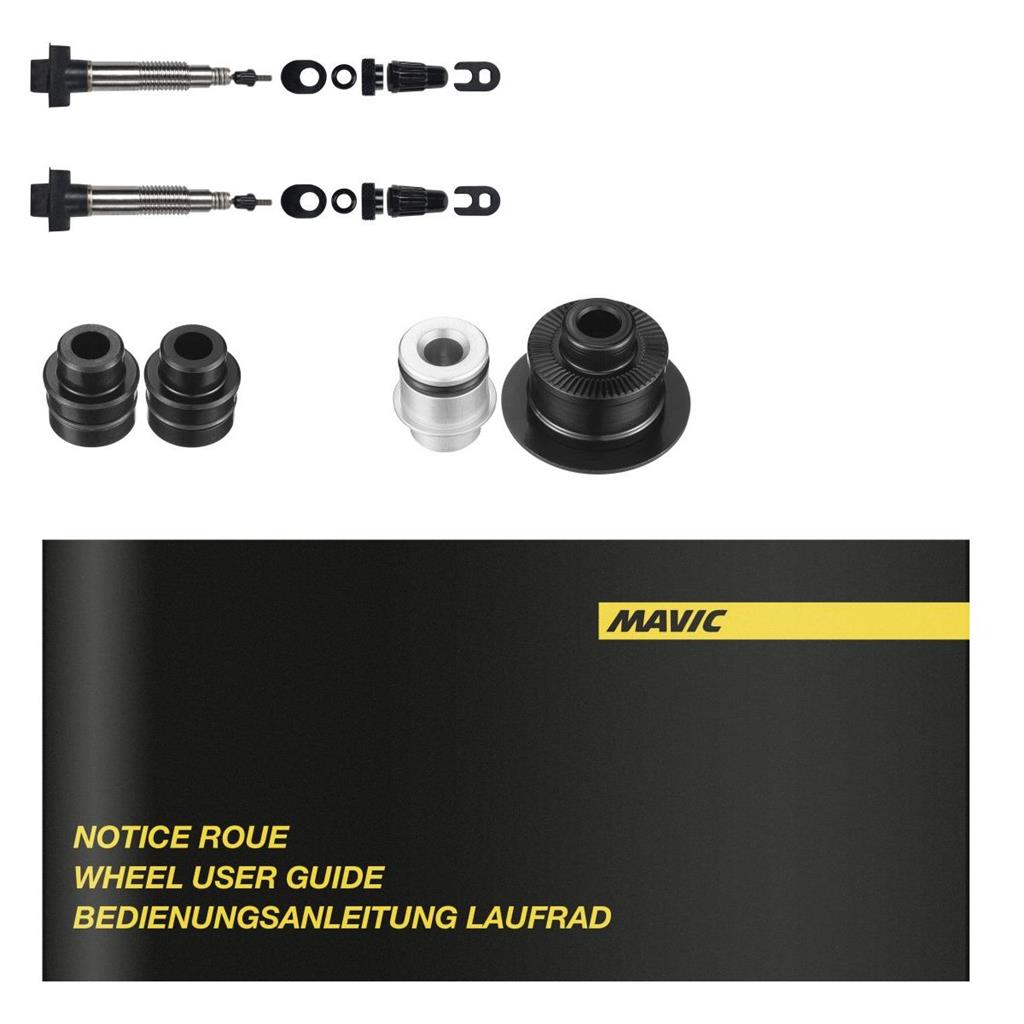

Front QR adapters
Rear QR adapters for Instant Drive 360
UST valve and accessories
Pre-installed tubeless rim tape
