EVERYTHING YOU WANT, NOTHING YOU DON'T
You’ve logged enough saddle time to know the difference. You’ve watched with appreciation as TIME bikes roll past. You’ve ridden multiple bikes and know that ride feel is more than marketing language, it’s the thing you’re actually chasing.

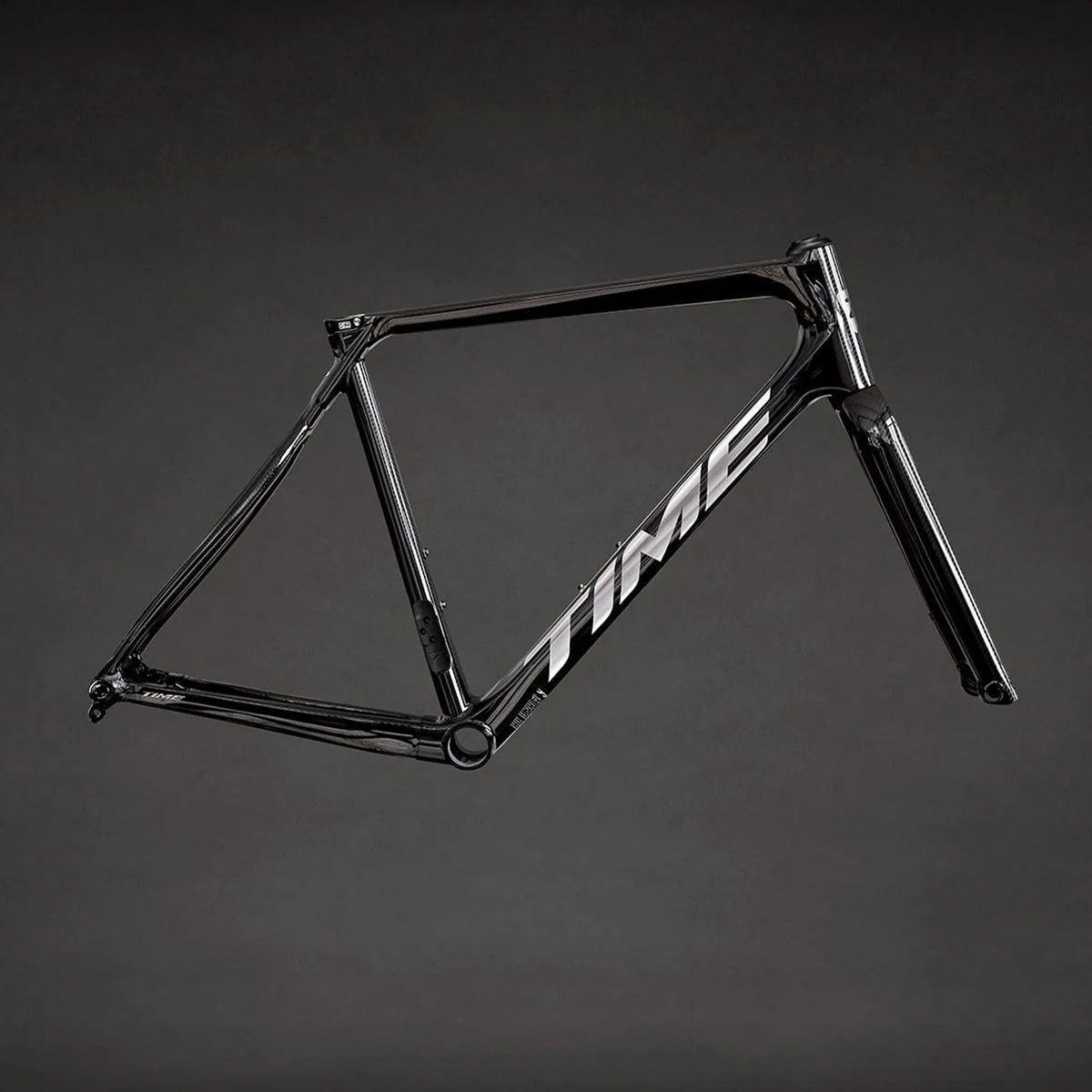

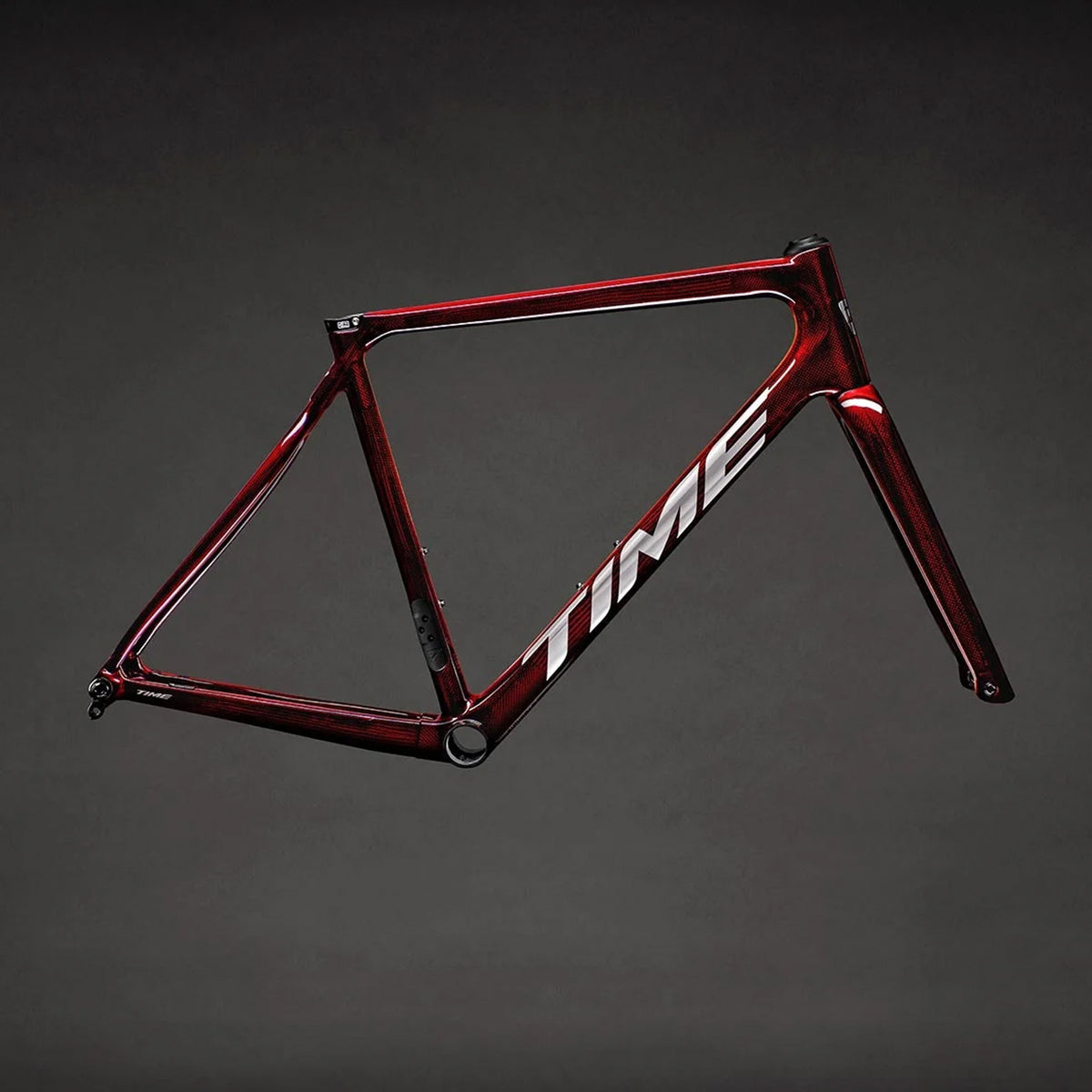

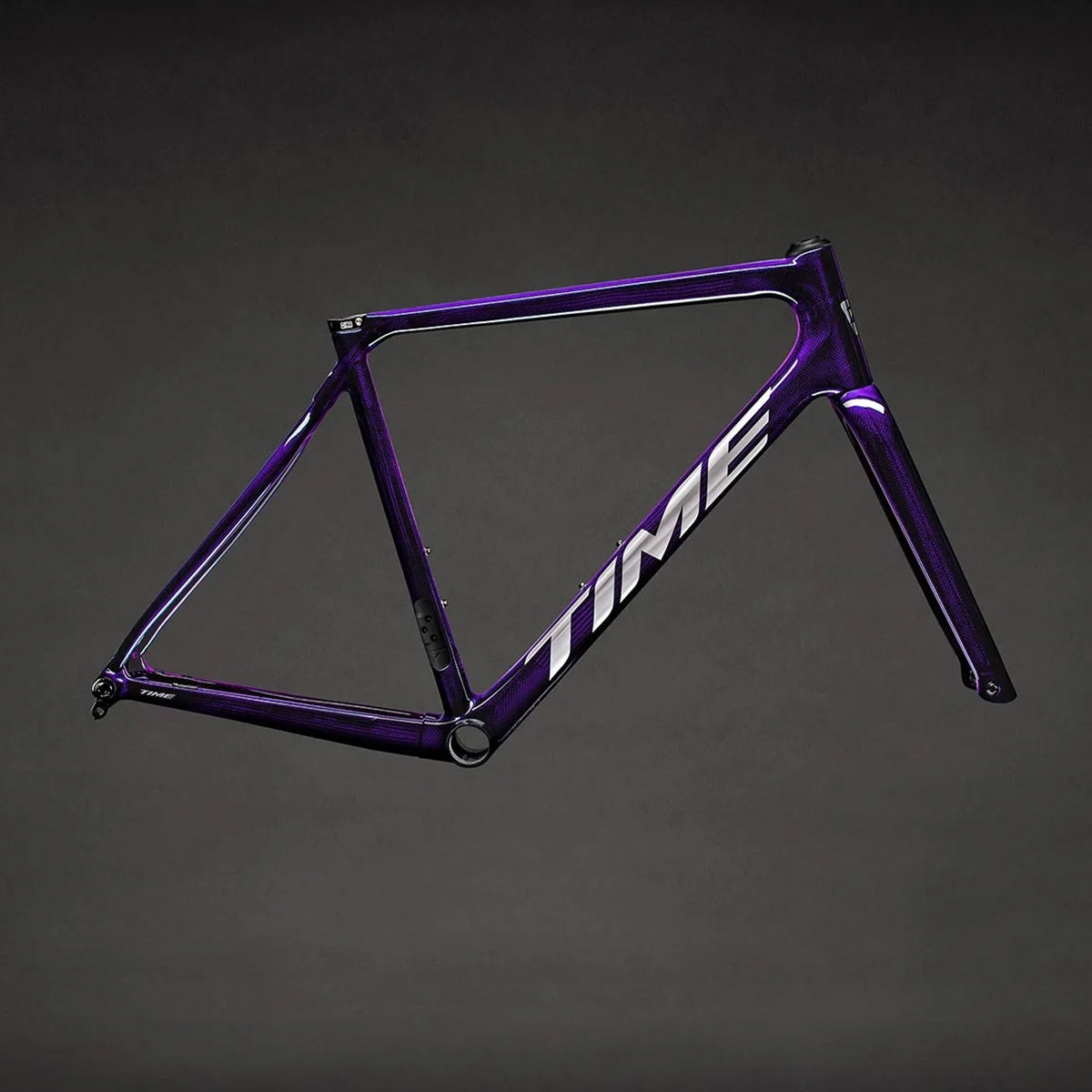

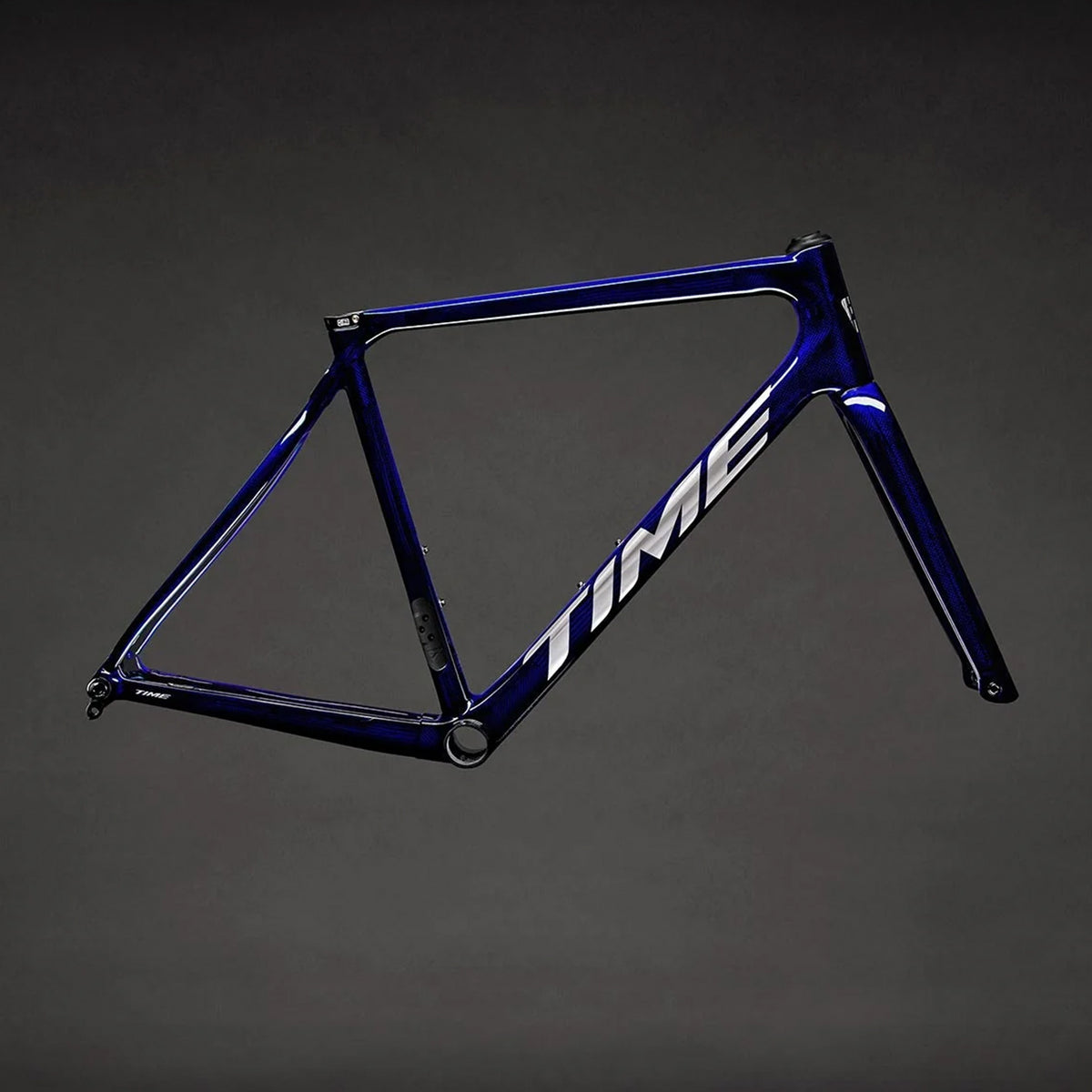

Built on proven TIME Braided Carbon Structure (BCS) carbon with a new Scylon-inspired fork, NXR delivers the signature ride quality we’ve refined for decades in a package that makes the decision easy. A geometry that responds instantly to your input – 32mm tire clearance for the roads you actually ride – Jewel-tone transparent finishes that let the carbon weave speak for itself. Pure Road is everything you want from NXR – nothing you don’t.

PURE ROAD DESIGN

NXR positions the rider in a balanced, classic road posture — neither the extreme reach of an all-out race bike, nor the taller stack of an endurance frame. It is the road position most riders actually want: powerful, comfortable for hours, and ready to attack the moment the road turns skyward.

It’s a bike that wants to ride with you, and which you’ll want to take with you on every new adventure. For us and our team of engineers, the NXR represents cycling clarity and climbing excellence, carrying forward an iconic legacy for TIME.

We believe that this is the idealized position most cyclists seek: efficient, sustainable for long durations, and perfectly tuned for when the road turns upwards. Yes, where the challenge begins is where the new NXR excels, delivering a perfect balance between responsiveness, precision, performance and comfort, and allowing you to take on those climbs with the assurance that only TIME can provide.

• Specifications
• Geometry
• Video

• Specifications

  Frame Material	Dyneema® Enhanced BCS Carbon Fiber
  Seatpost Diameter	27.2mm
  Sizes	XS, SM, MD, LG, XL
  Seatpost Clamp	Proprietary Semi-integrated Alloy
  Fork Steerer Tube	Kevlar Enhanced BCS Carbon Fiber – Tapered 1-1/8" to 1-1/2"
  Shifting	Compatible with all Electronic Shifting Systems
  Headset Bearings	FSA NO.69 SRS 1-1/8" / 1.5", 45° / 45° ACB
  Front Derailleur Mount	Standard
  Wheel Size	700c
  Rear Derailleur Mount	SRAM UDH Hanger
  Maximum Tire Width	32mm
  Brake Type	Front and Rear Flat Mount Disc
  Bottom Bracket	PF 386 EVO
  Rotor Size	140/160mm with Adapter
  Thru Axles	Front: 12mm × 121mm × 1.5mm Pitch Rear: 12mm × 170mm × 1.0mm Pitch
  Torque Specs	Thru Axles: 10Nm Seat Clamp: 4–5Nm FD Cover/Plate: 3Nm Disc Caliper Mounts: 6–7Nm

• Frame	XS	S	M	L	XL
  1   Seat Tube (Actual)	450	470	510	540	565
  2   Top Tube (Virtual)	513	531	555	570	580
  3   Seat Tube Angle	74.7°	74°	73°	73°	73°
  4   Head Tube Angle	71.5°	72.5°	73°	73°	73°
  5   Head Tube	122	142	166	186	204
  6   Fork Offset	47	47	47	47	47
  7   Axle to Crown	373	373	373	373	373
  8   Trail (30C Tire)	67	61	58	58	58
  9   Front Center	580	579	588	603	608
  10   Chainstay	415	415	415	415	415
  11   Drop	65	65	65	65	65
  12   Wheelbase	991	990	999	1014	1020
  13   Stack	514	538	562	582	601
  14   Reach	372	377	383	390	395
  15   Standover Height	748	770	800	825	845
