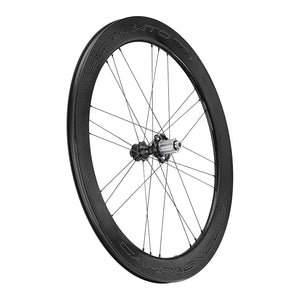

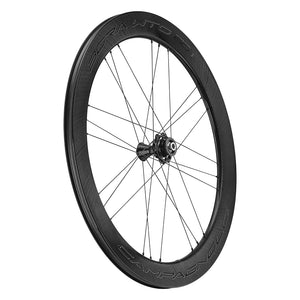

Campagnolo Bora WTO 60 DB

Freehub Type: Campagnolo

Campagnolo Bora WTO 60 DB

Campagnolo introduces its first aerodynamic disc brake wheel with a 60 mm profile, designed to appeal to cyclists with a love for speed. Its high profile can transfer all the aerodynamic advantages acquired from our research and development study to the road. The design of each wheel component enables maximum aerodynamic penetration, so that the wind stops being a hindrance to the cyclist and, at certain angles, becomes a help.

The wheel features unidirectional carbon rims with a rounded-profile optimised in the wind tunnel, new aerodynamic aluminium hubs and the ceramic USB cup-and-cone bearing system. Every design decision is determined by the sole goal of optimising performance. The profile of the rim, which has an internal width of 19 mm, makes a perfect pairing with 23, 25 and 28 mm tires. With 2-Way Fit technology, Campagnolo guarantees complete compatibility with both clincher and tubeless tyres. The hole-free upper bridge, achieved through the patented MoMag system, allows a weight saving, increased stiffness and now also an aid when using tubeless tires: no tape is required. Maintaining and cleaning the wheel during tire replacement has never been easier.

These wheels were made for extreme performance, the Campagnolo mantra is reliability: the G3 spoke pattern with double spokes on the left of the front wheel ensures balanced and safe braking in all conditions.

The design of the rim enables maximum aerodynamic penetration: at wind angles between 10° and 20°, a situation that accounts for 80% of time on the saddle, this wheel is unequalled when it comes to overcoming drag. The streamlined design of the central part of the hub and the special design of the flanges decrease the frontal area of the component reducing airflow turbulence. The 24-spoke pattern, along with their elliptical cross section, results in a far superior drag reduction.

The well-known USB cup-and-cone bearing system guarantees 50% greater smoothness than standard bearings. The 2-Way Fit profile allows you to fit either a clincher tire or to opt for a tubeless tire and benefit from the lowest rolling resistance
The 19mm inner width enables you to fit 23, 25 and 28mm tires, with perfect pairing of the rim-tire system.

The 60mm rim profile allows the transfer of all the benefits of aerodynamic optimisation that can’t be achieved with lower profiles. The wheel structure enables minimal energy dissipation, transferring all the energy produced by the cyclist to the asphalt. A 60 mm profile with a wheelset weight of 1,590g makes it the perfect ally to win sprint finishes, circuit races, time trials and cycling sections in triathlons.
24 steel elliptical-aero cross section spokes in the front, G3 pattern
24 steel elliptical-aero cross section spokes in the rear, G3 pattern
Campagnolo body
HG11 body
XDR body
1.590 g
Campagnolo 10/11/12s cassette
Shimano / SRAM 10/11s cassette
SRAM 12s cassette

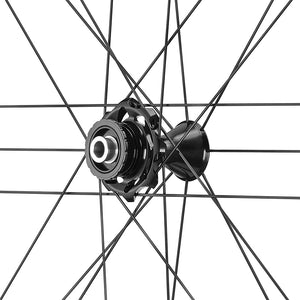

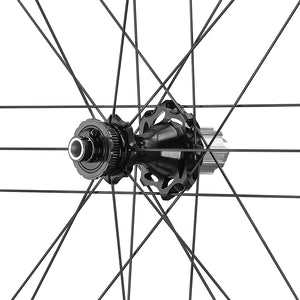

Black aluminium monolithic hub
Hub O.L.D.: 100 mm in the front, 142 mm in the rear
Axle material: aluminium
USB cup-and-cone bearing system with ceramic balls
Profile height: 60 mm
Rim material: carbon
Rim cross section (H x W): 60/26,1 mm
Internal width: 19 mm
Water transfer graphics
Clincher tires
Tubeless tires
The Bora™ WTO™ 60 Disc Brake wheel is entirely hand-assembled by a specialised Campagnolo® technician and is 100% checked using electronic instrumentation. This procedure ensures that every single Campagnolo® wheel offers maximum performance and reliability
44 mm tubeless valve
40 mm valve extender
Bushing to reduce the size of the valve hole
2 levers in composite material for tire removal - User manual

Note: Images are for reference only and may not match product exactly.
