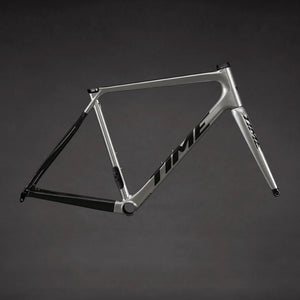

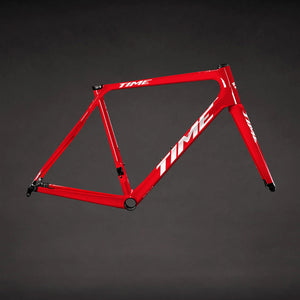

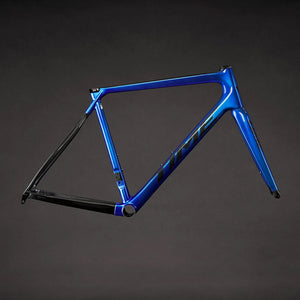

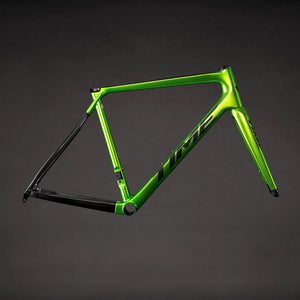

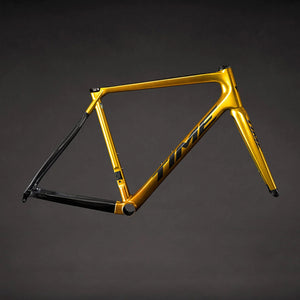

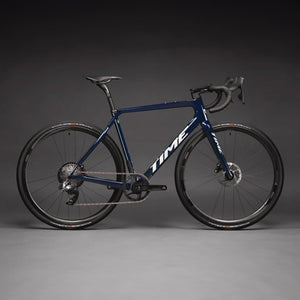

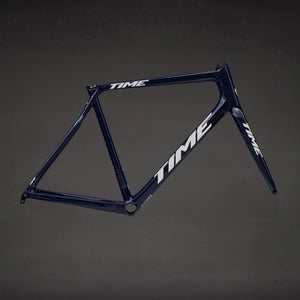

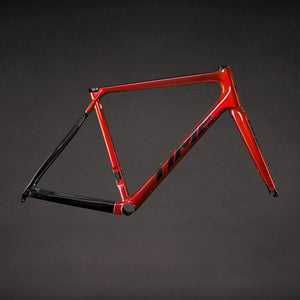

The newest edition of the famous Alpe D'Huez - Time's lightweight climbing frame is now updated with all of their newest tech. Two things shine here on the Alpe D'Huez, or what they call the ADH Disc - all integrated cable routing, and the addition of the super strong bio based fibre first seen on the ADHX, Dyneema.
Alpe D'Huez, The Ultimate Road Bike. We are known for the perfect balance of low weight, high efficiency, and responsive handling road bikes. The TIME Alpe d'Huez is the ultimate road bike that has stiffness and comfort rolled into one.

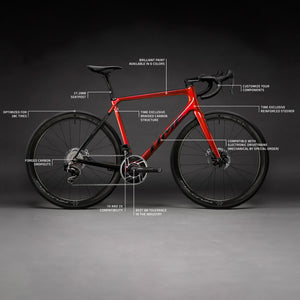

Using the Deda DCR headset, the ADH Disc can be run as fully integrated or semi integrated. The fully integrated cockpit adds to Time's already sleek look with their braided carbon.
Dyneema is a natural fibre that is 15x stronger than steel, while still being light enough to float on water. Since Time weaves their own carbon, they are able to add a layer of Dyneema into their carbon makeup without compromising in weight. This makes for a super strong frame where it matters most, specifically at the intersections of the downtube, toptube, and headtube. Dyneema, in addition to Time's BCS and RTM carbon laying process, makes for the best made bicycle frames in the world. If you want a frame that is perfect every time, it's time you choose Time.
Special orders; Please inquire with us if you are interested in building the Time ADH Disc with any groupset and wheelset.

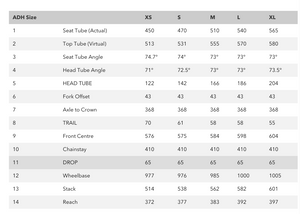

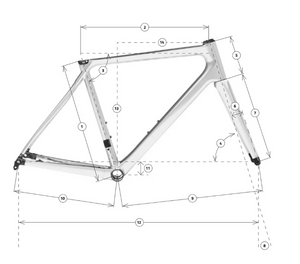

ADH Size | XS | S | M | L | XL | |
---|---|---|---|---|---|---|
1 | Seat Tube (Actual) | 450 | 470 | 510 | 540 | 565 |
2 | Top Tube (Virtual) | 513 | 531 | 555 | 570 | 580 |
3 | Seat Tube Angle | 74.7° | 74° | 73° | 73° | 73° |
4 | Head Tube Angle | 71° | 72.5° | 73° | 73° | 73.5° |
5 | HEAD TUBE | 122 | 142 | 166 | 186 | 204 |
6 | Fork Offset | 43 | 43 | 43 | 43 | 43 |
7 | Axle to Crown | 368 | 368 | 368 | 368 | 368 |
8 | TRAIL | 70 | 61 | 58 | 58 | 55 |
9 | Front Centre | 576 | 575 | 584 | 598 | 604 |
10 | Chainstay | 410 | 410 | 410 | 410 | 410 |
11 | DROP | 65 | 65 | 65 | 65 | 65 |
12 | Wheelbase | 977 | 976 | 985 | 1000 | 1005 |
13 | Stack | 514 | 538 | 562 | 582 | 601 |
14 | Reach | 372 | 377 | 383 | 392 | 397 |
Collections: Bikes Clearance Road Time Bikes
TIME offers a lifetime guarantee for their frames. Free from production or material defects if purchased from an authorized dealer or directly from TIME's website.
TIME offers a lifetime guarantee for their frames. Free from production or material defects if purchased from an authorized dealer or directly from TIME's website.
We offer free shipping on all TIME framesets across Canada and mainland USA.
